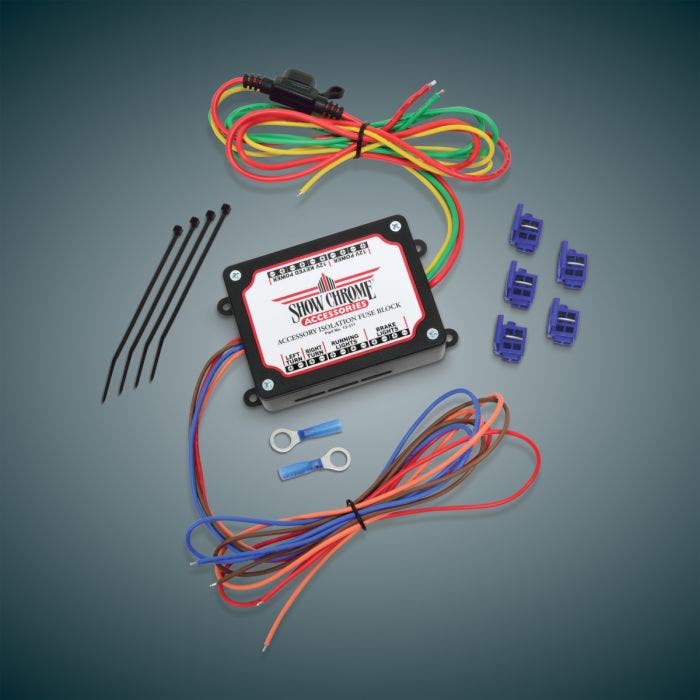

Big Bike Parts delivers a game changer in the standard for electrical accessory connections on motorcycles with their new Electronic Fuse Block. Designed with eleven terminal tie in points which are electronically protected by nine separate relays and fuses. This fuse block is a compact 1 1/8’’ x 2 ¾’’ x 3 ¾’’ which easily mounts to the battery, eliminating all other direct battery connection needs and making accessory connection a breeze. The bike’s electrical system is protected by a 20 amp fuse and separate 30 amp relay to isolate all your electrical accessories from the bike’s electrical system. Includes 3 keyed power connections, 2 always on power connections protected by a combination of 5 and 10 amp fuses. Separate left and right turn signal connection terminals, 2 running light and 2 brake light terminal blocks, all protected by four 8 amp 277 volt automatic switch relays for complete isolation. This universal wiring accessory is a must have when adding electrical accessories to today’s modern electronic oriented bikes.
- 13-311 Installation Instructions (266.8 KB)
